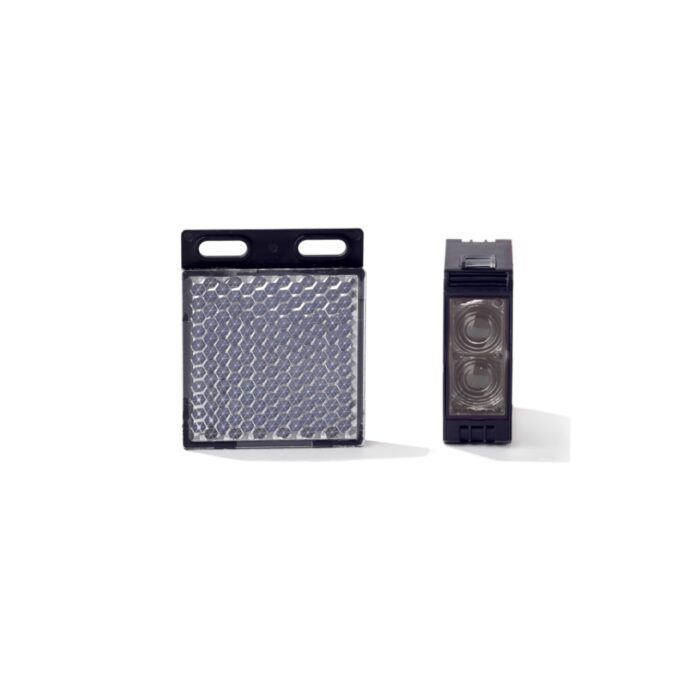

GN50 photoelectric switch
Retro-Reflective /Through-Beam/Self-heating
Detection range:3m-200m.

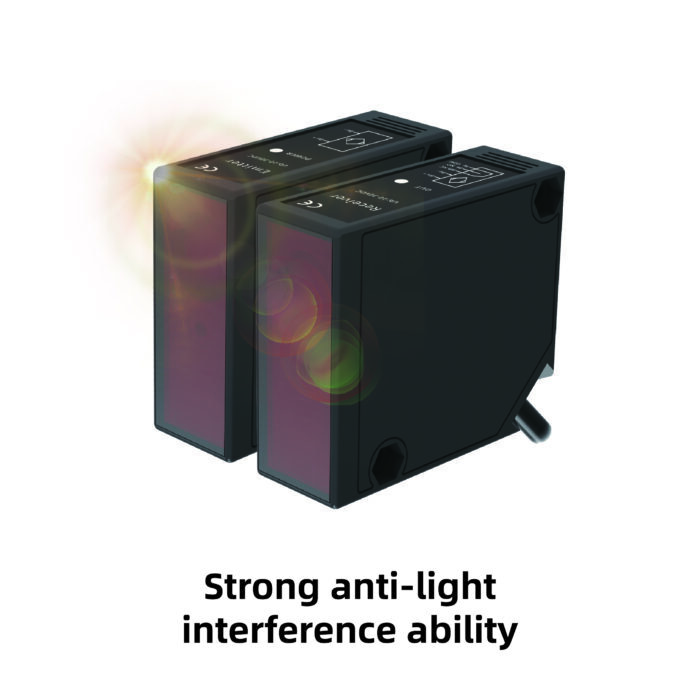

Highly resistance to sunlight, suitable for outdoor environments.
Advanced optical technology for long distance detection.
Strong electromagnetic compatibility.
With power reverse polarity protection, make your wiring easier.
Resistant to high and low temperatures, -40°C to +70°C.

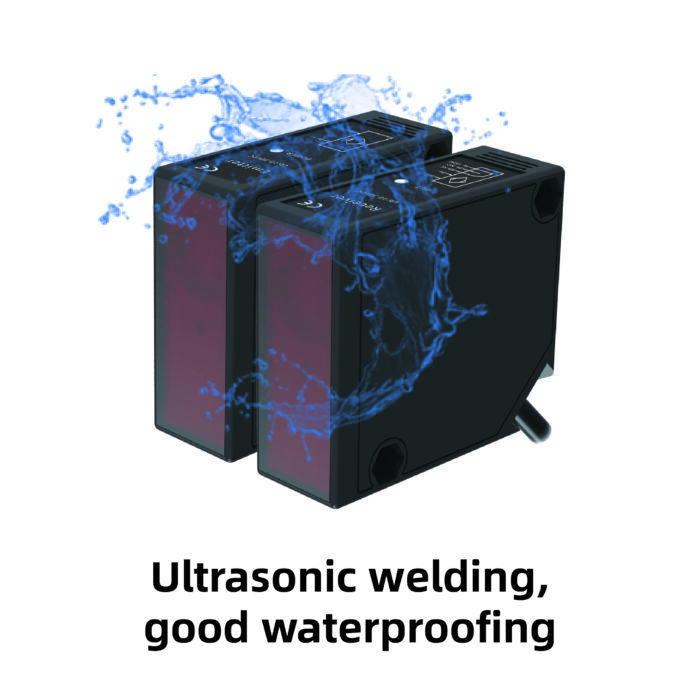

Protection level IP67.
| Detection mode | Type | Distance | Light source | Output |

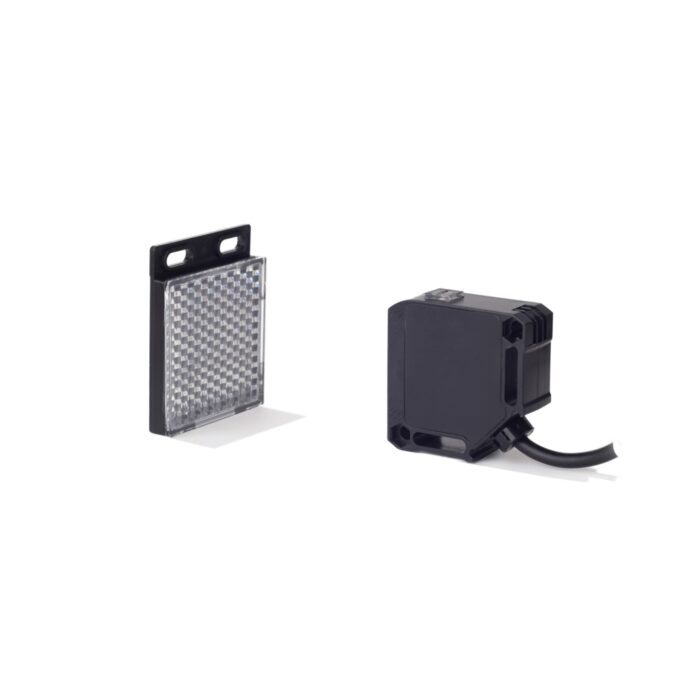

| Mirror reflection type | GN50MR07 | 7m | Red light | NPN NO |
| GN50MR10-0 | 10m | Red light | Relay NO | |
| GN50MR10 | 10m | Red light | Relay | |

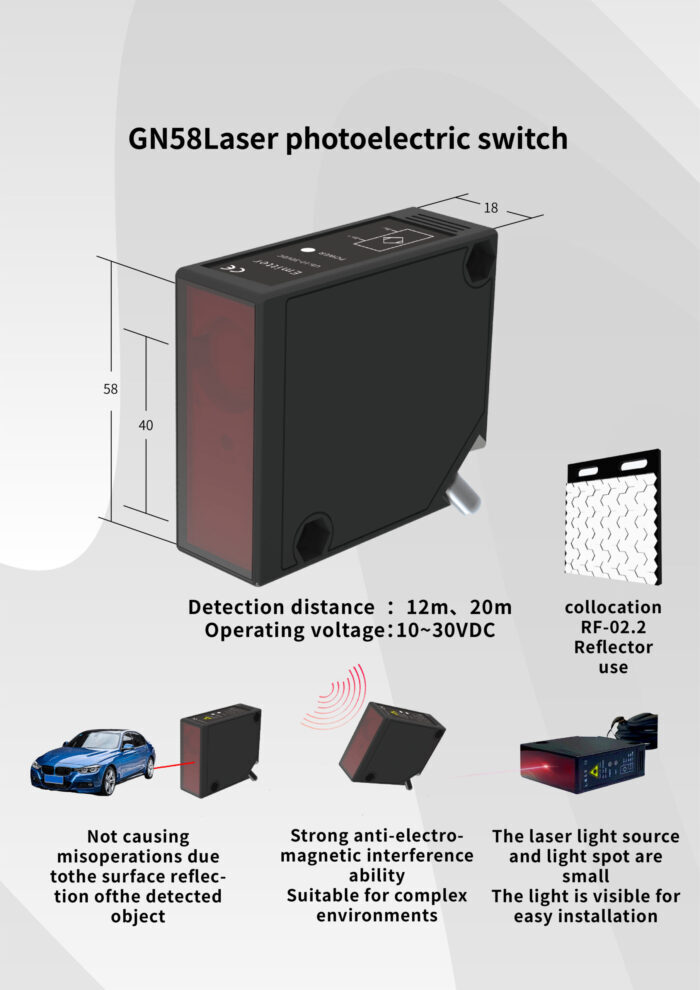

| GN50ML15 | 15m | Red laser | Relay | |

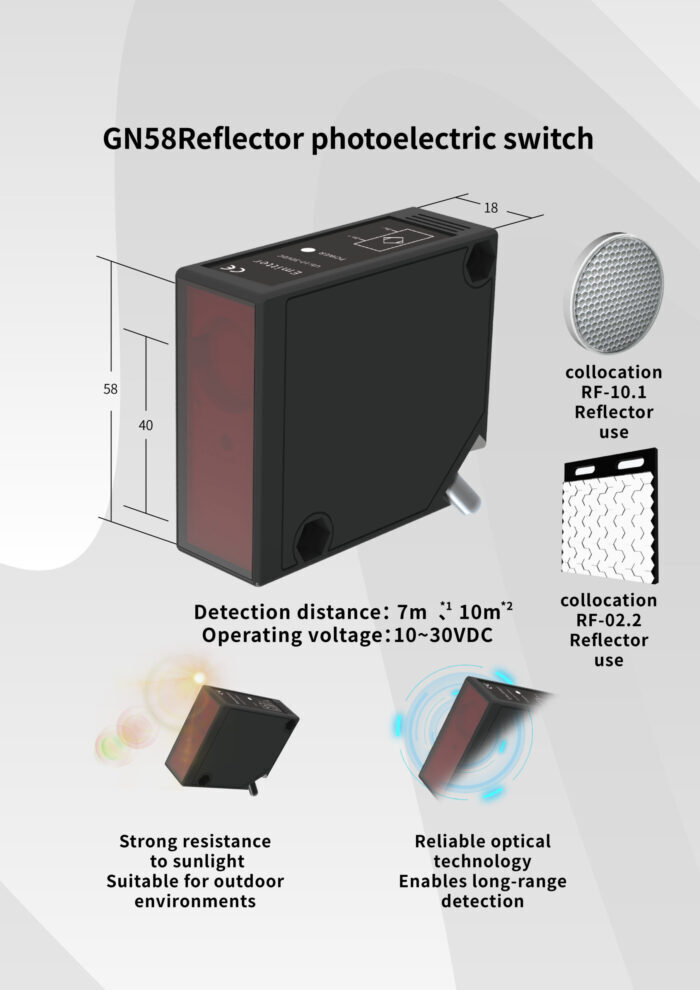

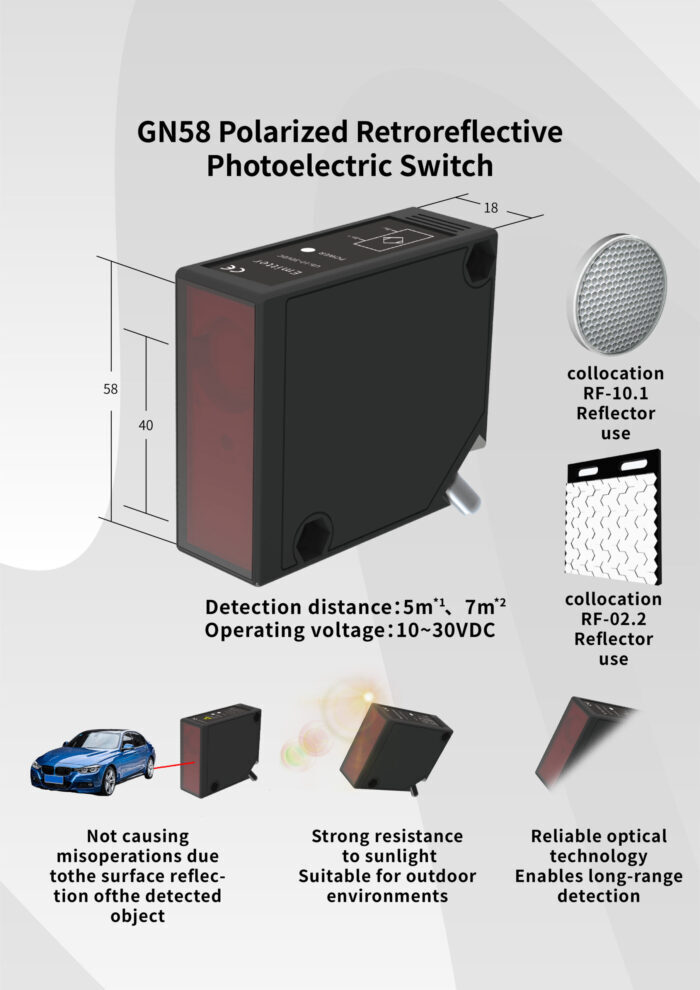

| Polarizer reflection type | GN50PR-0 | 7m | Red light | Relay NO |
| GN50PR07 | 7m | Red light | Relay | |
| GN50PL15 | 15m | Red laser | Relay | |

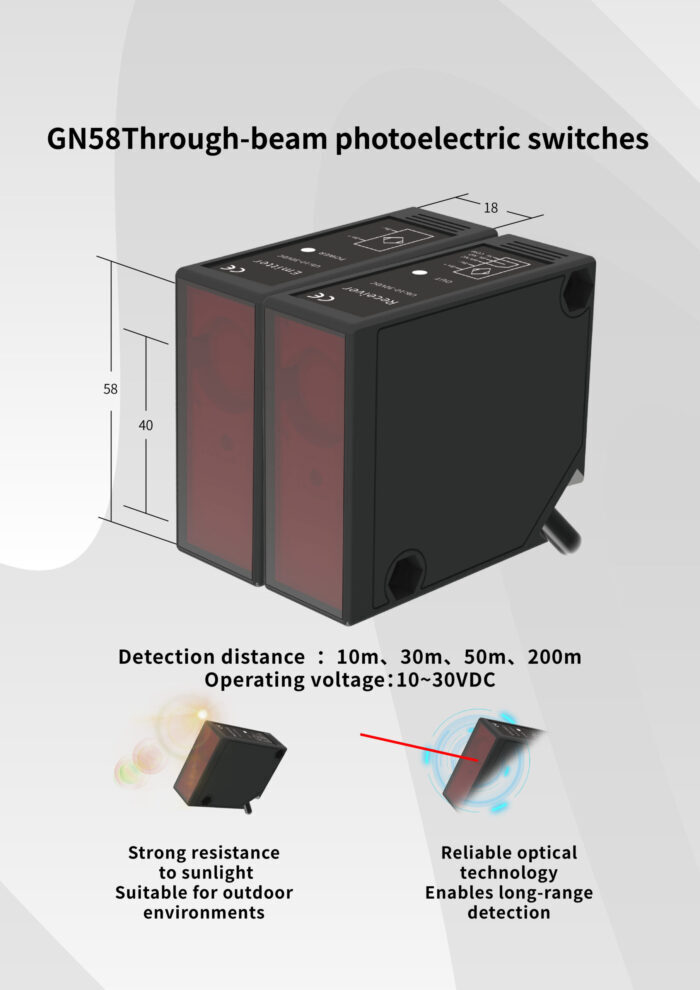

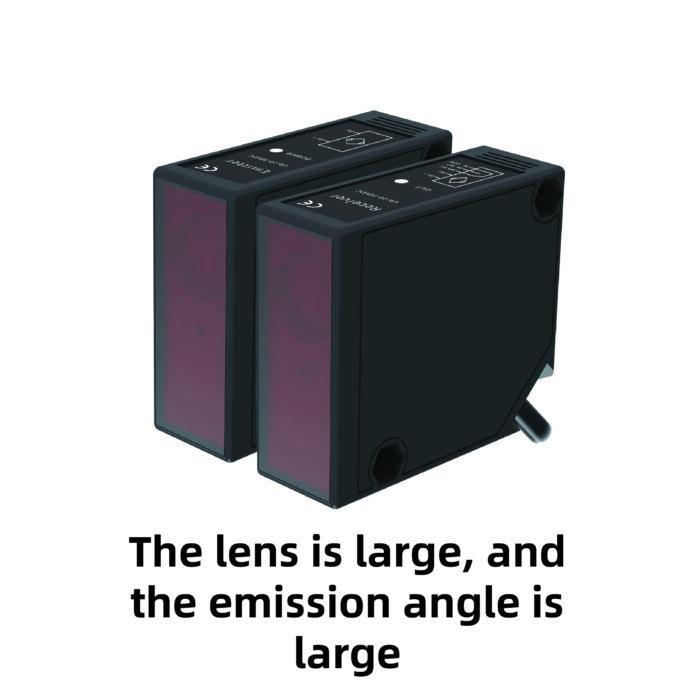

| Through-beam type | GN50E30(Tx) | Infrared | ||
| GN50R30(Rx) | 30m | Relay | ||
| GN50E50(Tx) | Infrared | |||
| GN50R50(Rx) | 50m | Relay | ||
| Power supply | 10-30VDC | Lens material | PMMA/Glass | |
| Current | ≤40mA | Operation temperature | -25℃ to 55℃(Laser -15℃ to 55℃) | |
| Power-on delay | 200ms | Storage temperature | -35℃ to 70℃ | |
| Repeatability | 10% | Protection circuit | Polarity protection; Surge protection | |
| Red LED | Output indication | Protection class | IP67 | |
| Green LED | Power indication | Cable | Standard 2m | |
| Housing material | ABS+PC | |||
