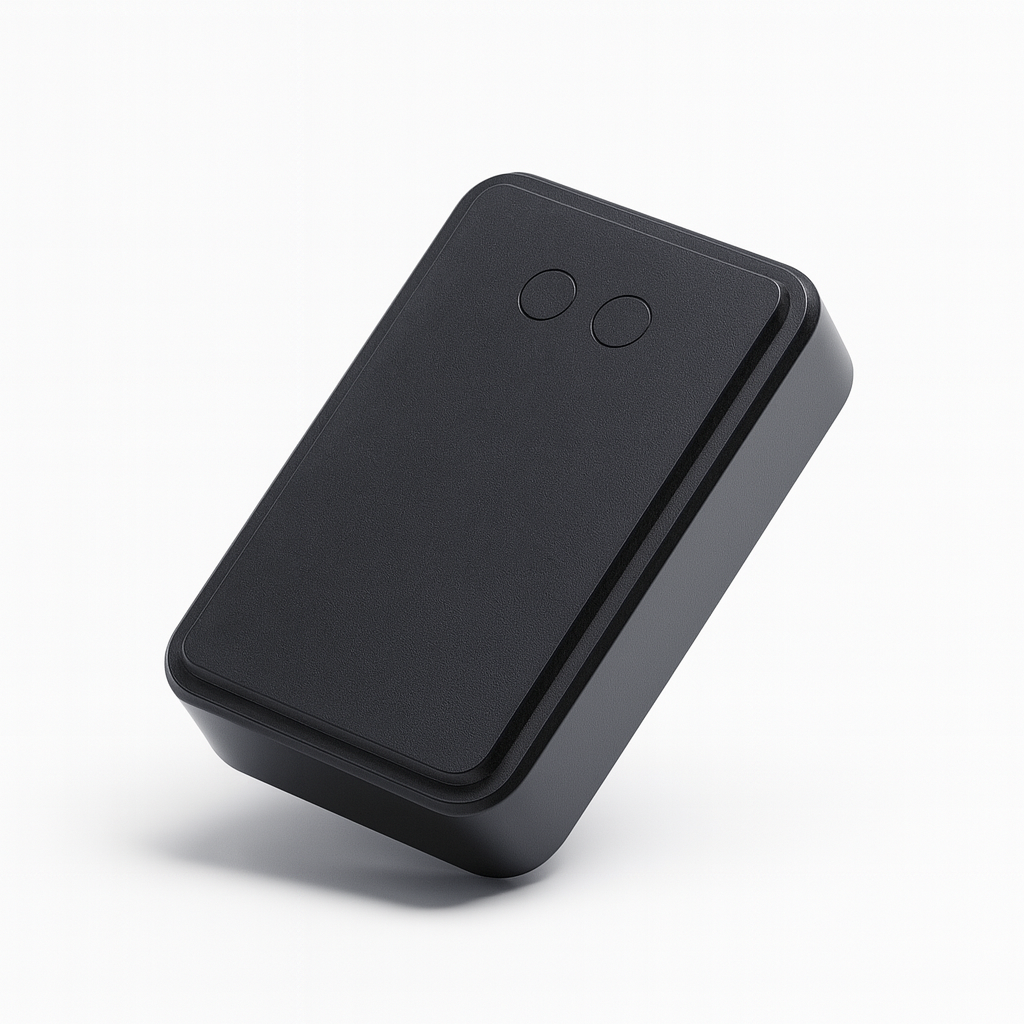

GNS-MW79 79GHz Radar Sensor for Gate and Barrier

GNS-MW79 79GHz Radar Sensor for Gate and Barrier

GNS-MW79
79 GHz Radar Sensor for Barrier and Gate /Replacement of Loop Detector /Parking Garage Parking Lot Security

  • Wide Voltage Design, +9V ~ +24V
  • Precise identification and differentiation of people and vehicles
  • Adaptable to different types of barrier gates in barrier systems
  • Seamless integration with barrier systems, easy to install
  • Long lifespan, can be used for over 10 years
  • No need for ground cutting, low maintenance cost
  • Unaffected by strong light, rain, snow, fog, and other environmental conditions
  • IP67 standard, waterproof sealed structure, impervious to water and dust

GNS-MW79 Specification

Application technology Doppler radar
Transmission frequency 79 GHz
Transmission power <20dBm
Mounting height 0-1m
Detection area 0-6m
Operation voltage 9 ~ 24VDC
Operation current Max. 75 mA
Power frequency 50 Hz
Temperature range – 40 ℃ to + 85℃
Protection grade IP67
Relay output Max. 48 VAC/DC, Max. current 1A
External dimensions 102mm x 72mm x 32mm
Cable length 2m
