ZMW24
24GHz Radar Sensor for Barrier and Gate /Replacement of Loop Detector /Parking Garage Parking Lot Security
- Wide Voltage Design, +9V ~ +24V
- Precise identification and differentiation of people and vehicles

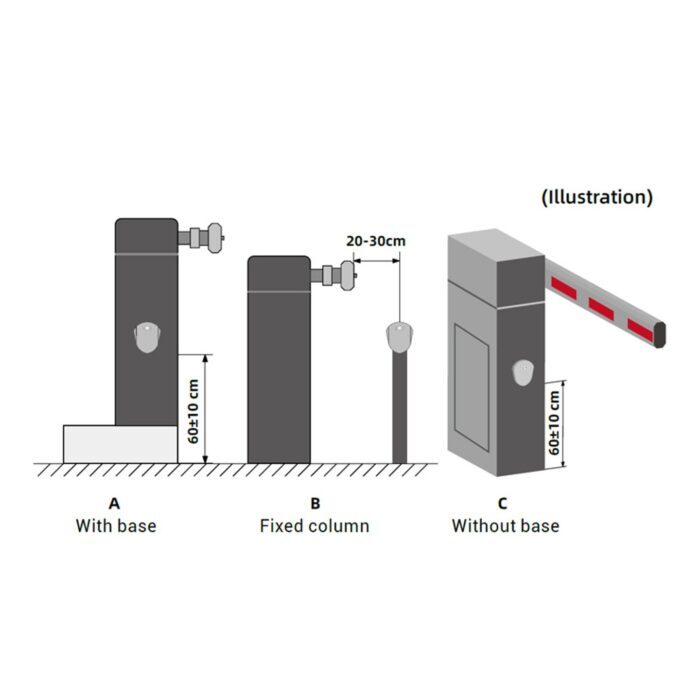

- Adaptable to different types of barrier gates in barrier systems
- Seamless integration with barrier systems, easy to install
- Long lifespan, can be used for over 10 years
- No need for ground cutting, low maintenance cost
- Unaffected by strong light, rain, snow, fog, and other environmental conditions
- IP67 standard, waterproof sealed structure, impervious to water and dust
MW24 Specification
| Scope of applicationStraight bar gate |
|
| Input voltage |
DC12V 150mA |
| Working frequency |
24-24.5GHz |
| Modulation mode |
FMCW |
| Transmit power |
10-1 5dBm |
| Horizontal beam |
< 30℃ |
| Vertical beam |
< 17℃ |
| Detection distance |
1-6 meters, +-0.1 meters |
| Operating temperature |
-40℃~+85℃ |
| Degree of protection |
IP67 |
