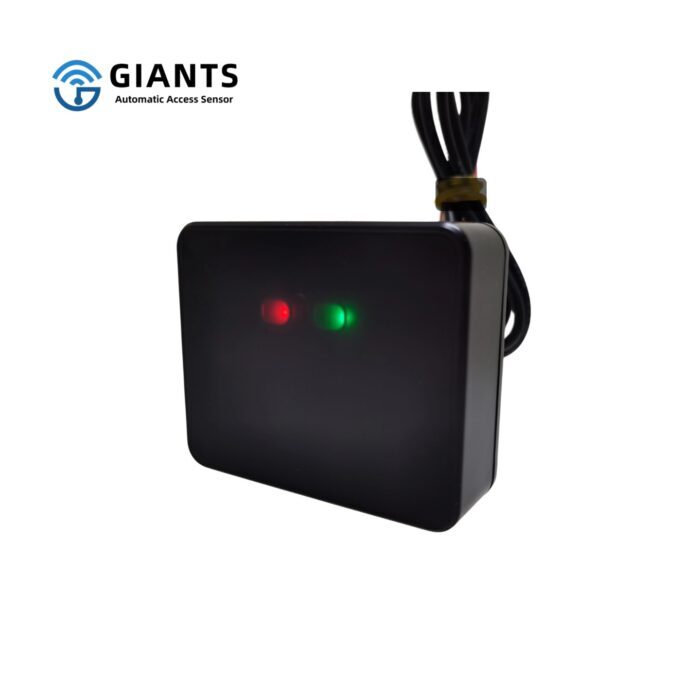

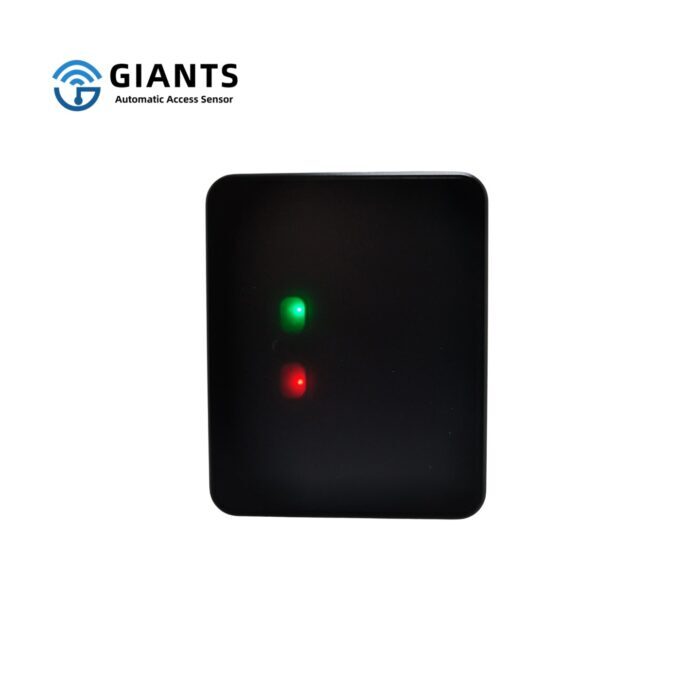

MW60

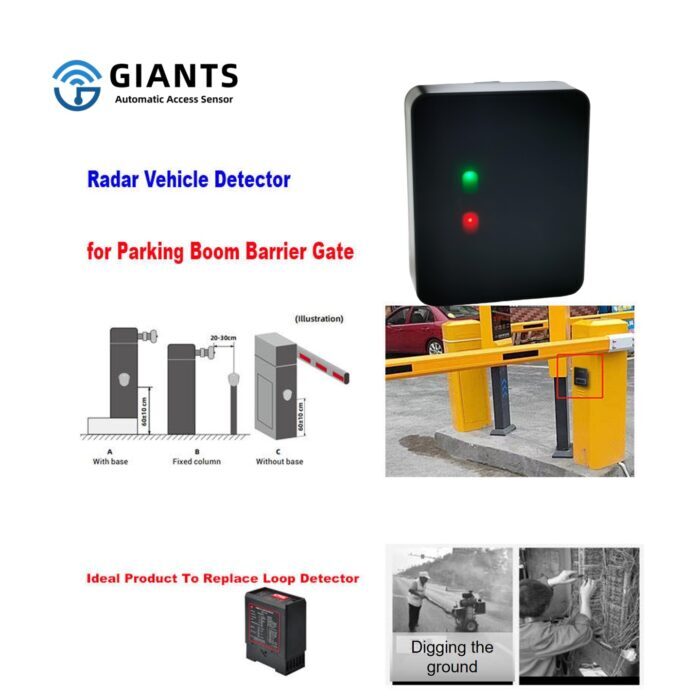

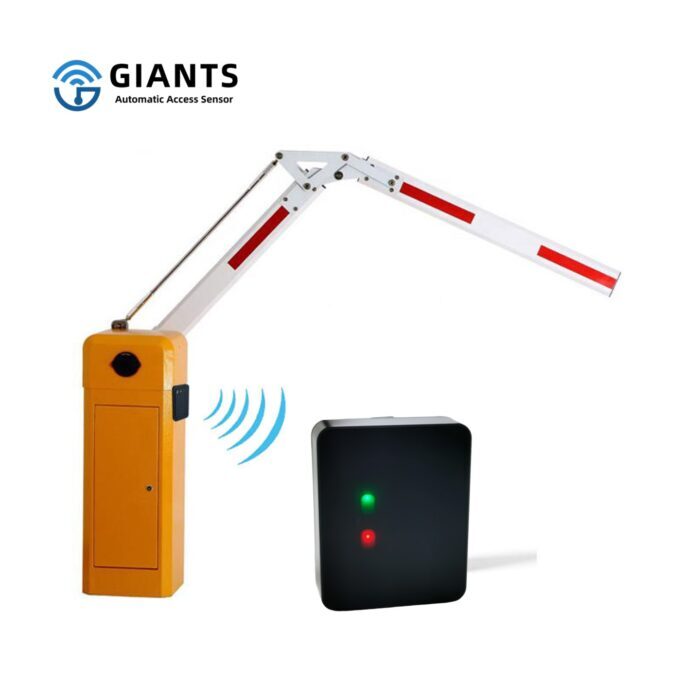

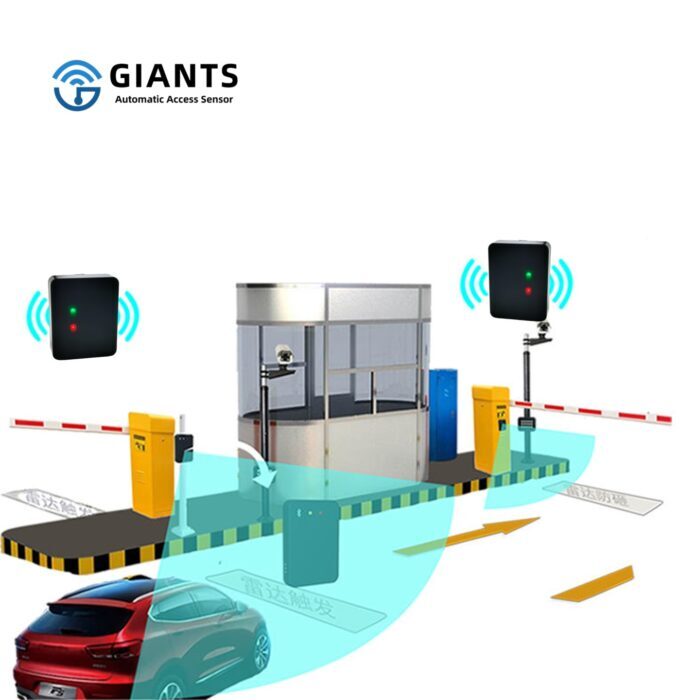

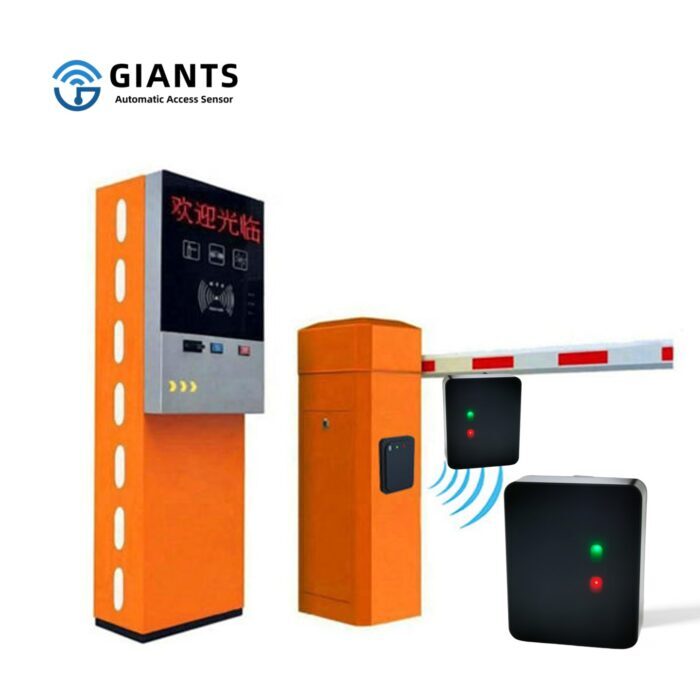

60GHz Radar Sensor for Barrier and Gate /Replacement of Loop Detector /Parking Garage Parking Lot Security
- Wide Voltage Design, +9V ~ +24V

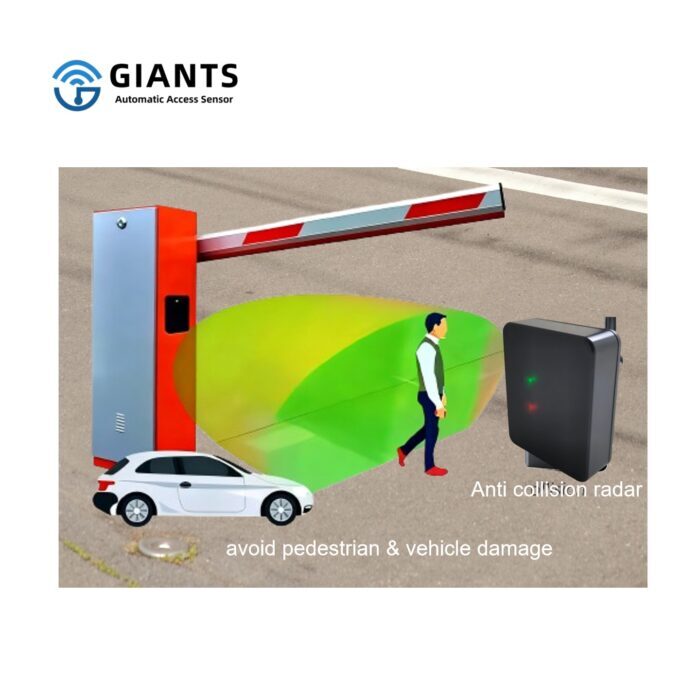

- Precise identification and differentiation of people and vehicles

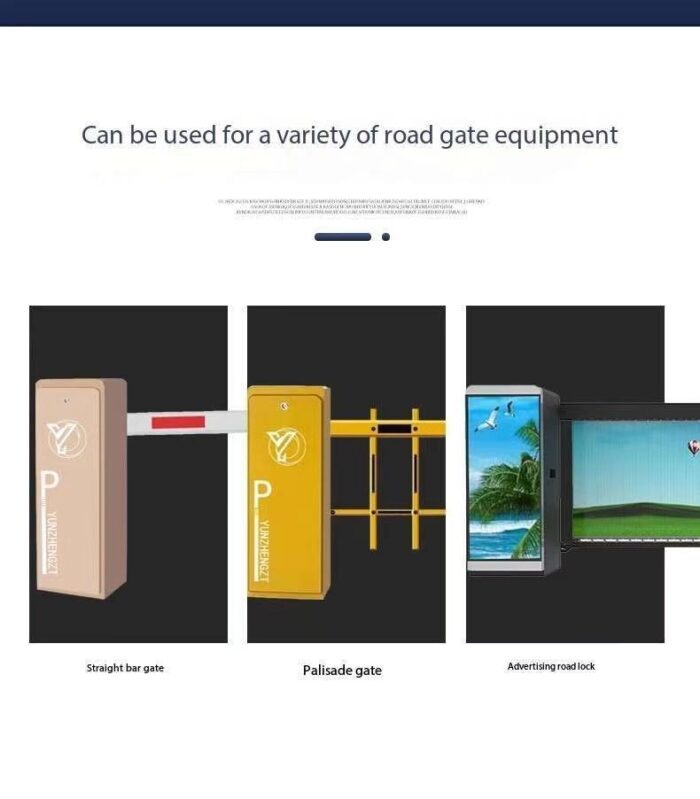

- Adaptable to different types of barrier gates in barrier systems
- Seamless integration with barrier systems, easy to install
- Long lifespan, can be used for over 10 years
- No need for ground cutting, low maintenance cost
- Unaffected by strong light, rain, snow, fog, and other environmental conditions
- IP67 standard, waterproof sealed structure, impervious to water and dust
MW60 Specification
| Housing |
ABS |
Signal outputs |
solid state relays (galvanicallyisolated, common) |
| Dimensions (w x h x d) |
56 x 70x 21mm |
Firmware Upgrade |
Bluetooth Communication upgrade |
| Weight |
100 g |
Switching voltage |
max.30 V AC/DC |
| Port |
4-pin/8-pin connection cable 0.15 mm², 1m |
Switching current |
max.100 mA |
| Protection class |
IP67 |
Operating status display |
2 LEDs: red//green |
| Power supply |
9 – 30 V DC |
Communication interface |
Bluetooth BLE 5.0 |
| Power consumption |
max. 1 W |
Detection range |
MW60S max. 2m x 6.0 m |
|
|
|
MW60D Activation max.5m x 6m;Presence max.2m x 6m |
| Temperature range |
-40°C to 85°C |
Reaction times |
50ms |
| Frequency range |
60-64 GHz |
Mounting |
2 x M4*8 Fixing screws |
| Technology |
mmWave-Radar,FMCW |

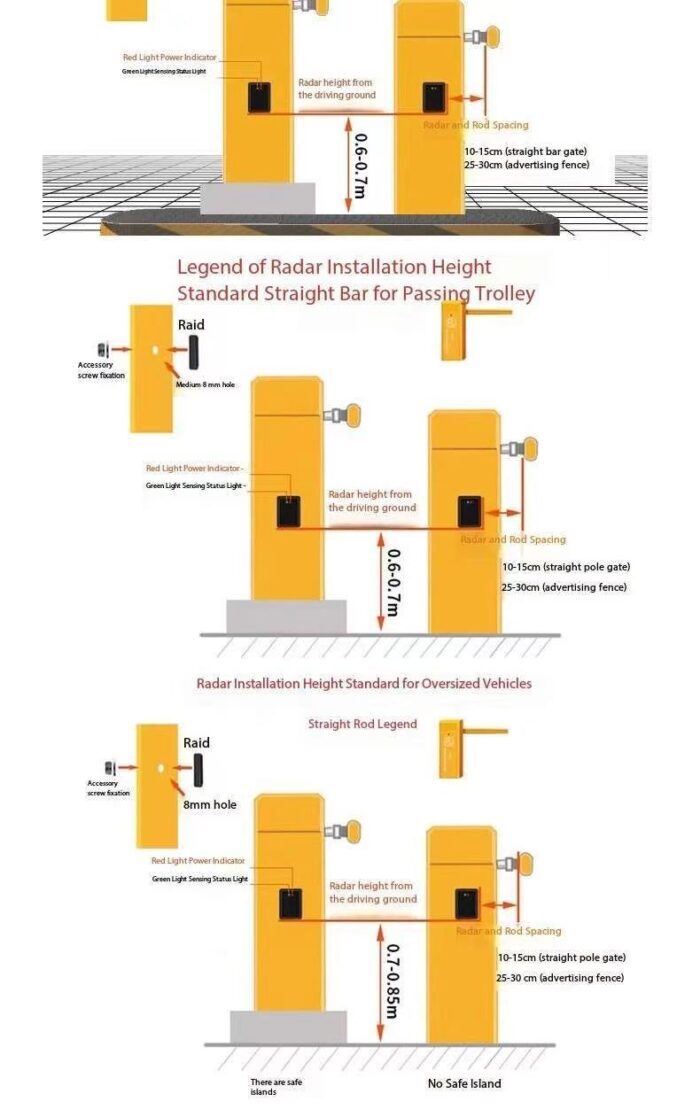

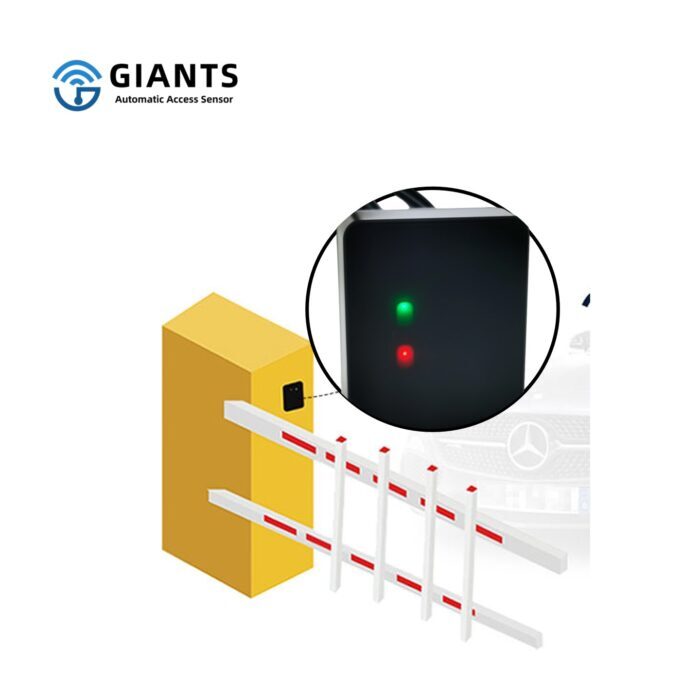

Mounting height |
0.5-0.9 m,recommended 0.6 m directly on the barrier housing |
