PANO Microwave Motion Sensor

Categories ,

PANO
Industrial Radar

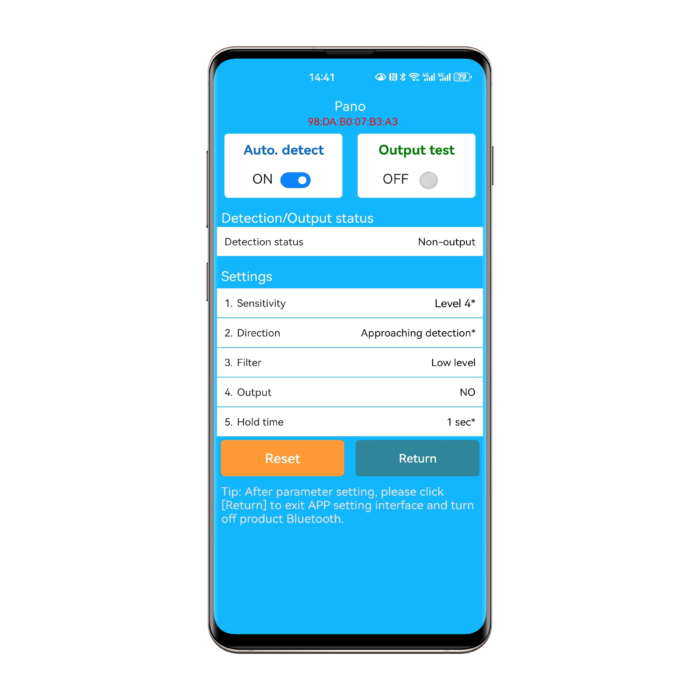

  • New generation industrial radar Max. 7m height and 100m² zone App settings
  • IP65 metal housing Switch ON/OFF radar Hold time 1s-30s options
  • Suitable for cold storage applications

Pano Specification

Application technology Doppler radar
Transmission frequency 24.125 GHz
Transmission power <20dBm

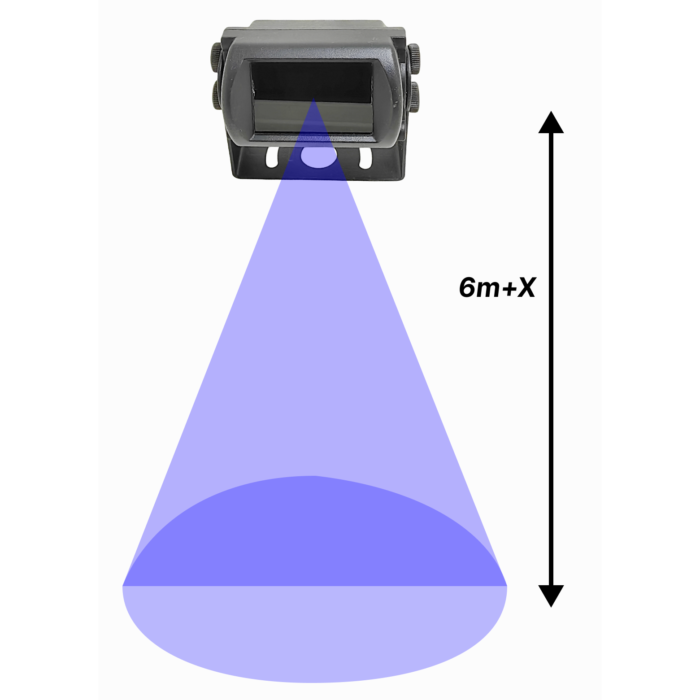

Detection height Standard:2m to 6m;X:7m
Angle adjustment 0° – 90° longitudinal
Detection speed 5 cm/s ~ 60 km/h
Detection zone 8m*6m @6m height
Temperature -30℃ to +60℃
Humidity 0% to 95%，Non-condensing Dew
Voltage 12-36VACDC
Current Max. 75mA
Housing material Aluminum
IP rating IP65
Output Max. voltage48VAC/DC；Max. current 0.1A
Dimension 75mm x 45mm x 75mm
Cable length 3m
Weight 280g
