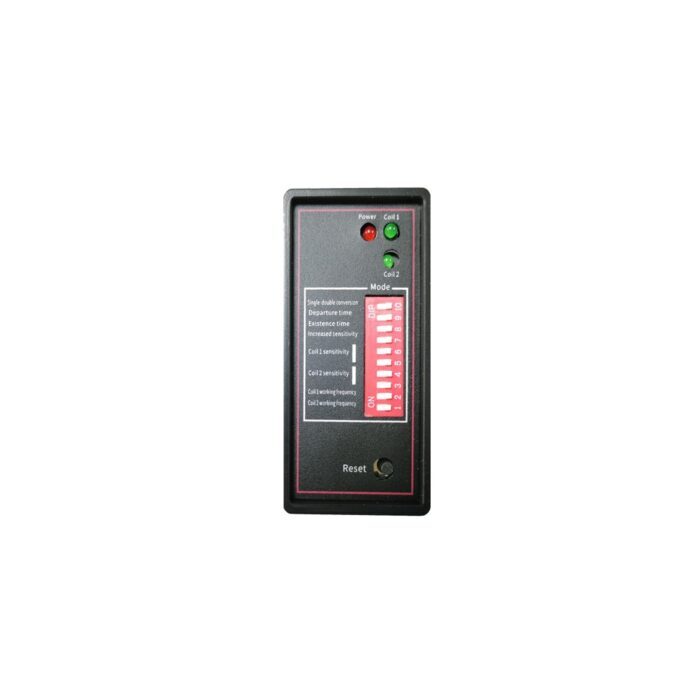

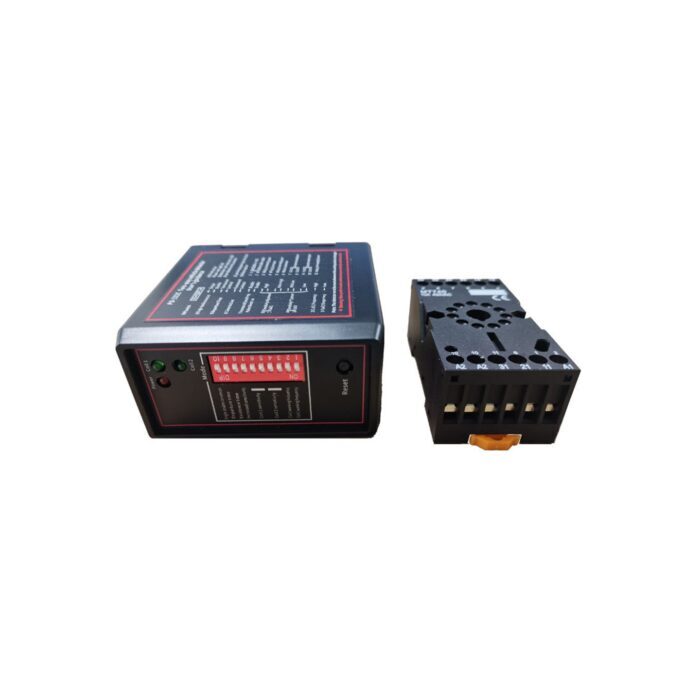

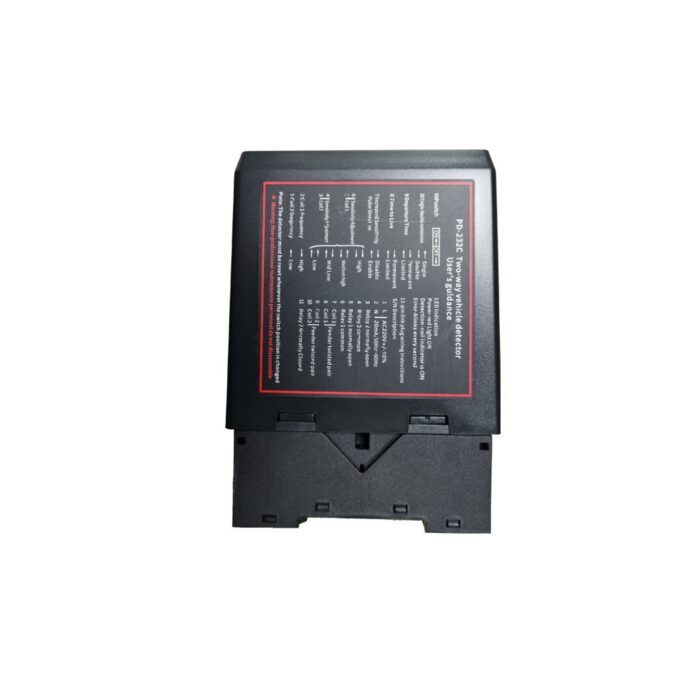

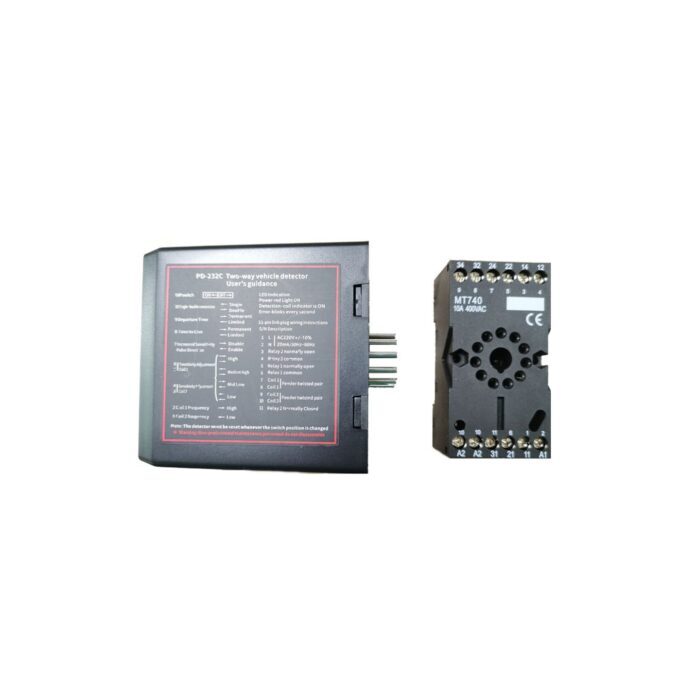

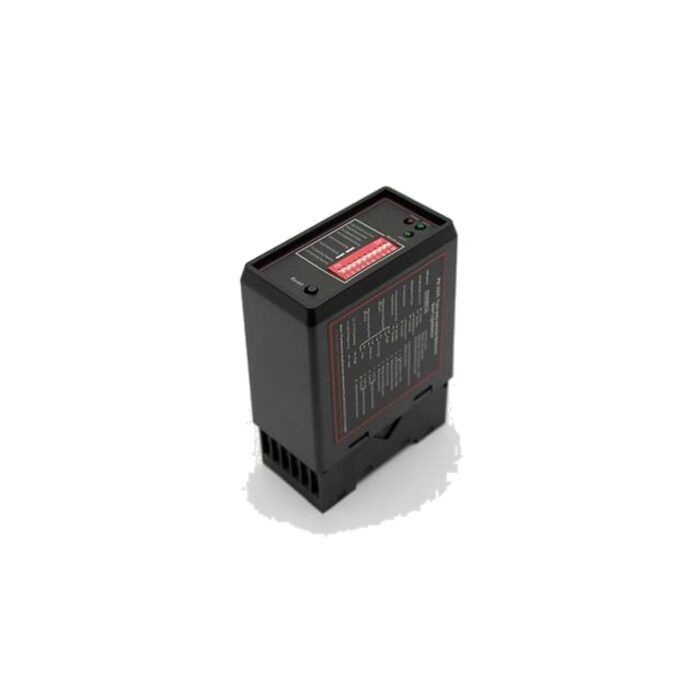

Inductive Vehicle Detector PD232
PD232 dual-channel inductive loop vehicle detector for barrier gate system, such as for monitoring and protecting passages or for counting vehicles. The output signal can be used to control gates and gate drives, operate barriers, control traffic light systems, or activate card distributors in parking lots.
PD232 Specification
| ParameterSpecificationParameterSpecification |
|
|
|
| Project Name |
Vehicle Single Loop Detector |
Response Time |
10 ms |
| Power Supply Voltage |
230V AC, 115V AC, 24V DC/AC, 12V DC/AC (Refer to label on detector) |
Signal Hold Time |
Unlimited / Limited (10 minutes when loop is permanently covered) |
| AC Voltage Tolerance |
10%/-15% |
Sensitivity |
Adjustable in 4 increments |
| DC Voltage Tolerance |
±15% |
Loop Inductance |
Total loop + lead-in wire: 50μH to 1000μH (Ideal: 100μH to 300μH) |
| Power Consumption |
4.5 VA |
Lead-in Wire |
Max length 20m, twisted at least 20 times per meter |
| Output Relay |
240V/5A |
Housing Dimensions |
78x40x108 mm (LxWxH) |
| Frequency Range |
20 kHz to 170 kHz |
|
|
