Revolving Door Laser LIght Curtain RCS401

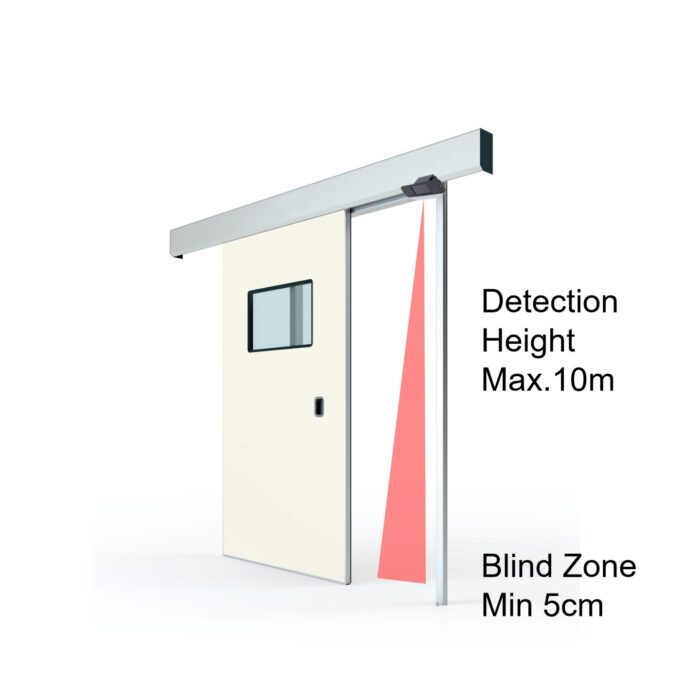

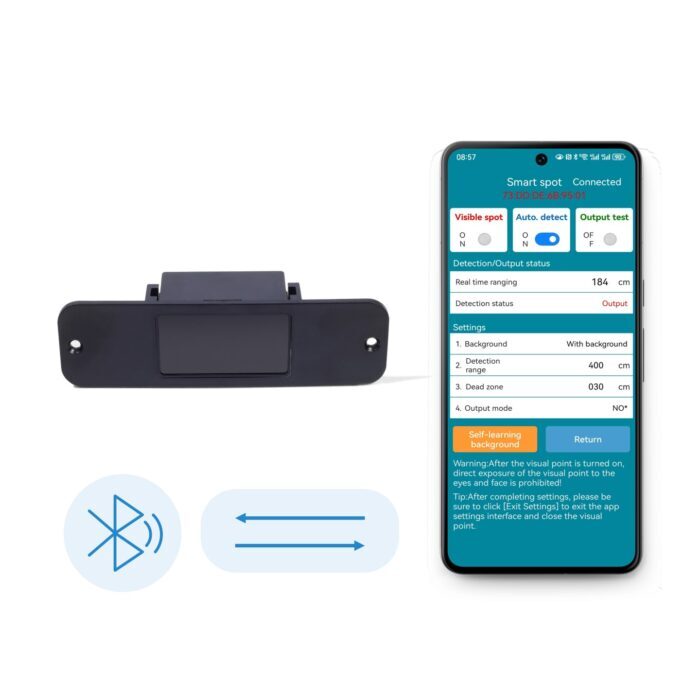

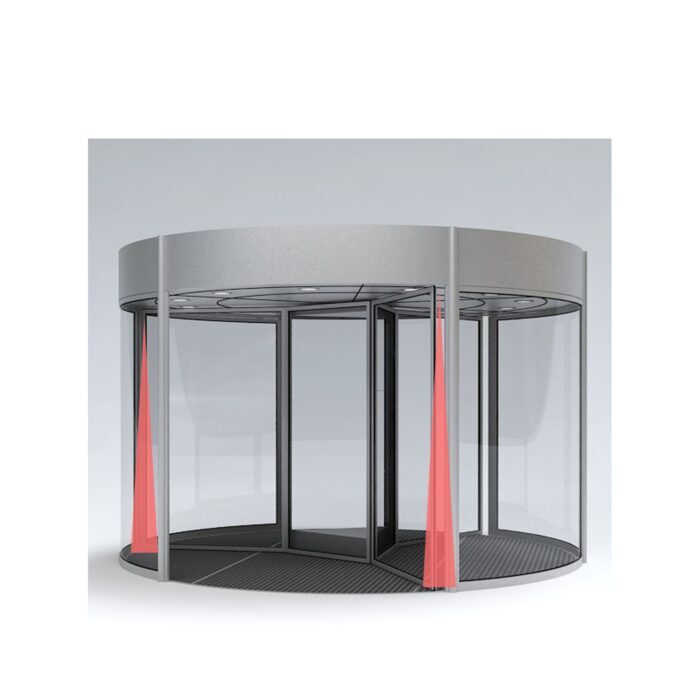

The RCS401 is a specialized 2D laser safety curtain designed for revolving door and high-traffic entrance protection. With a 10-meter detection height and precision down to 1cm accuracy, it features a unique 1:4 aspect ratio that delivers optimized vertical coverage (e.g., 2m height → 50cm width). Its IP65-rated housing, visible alignment spots, and mobile app configuration ensure quick installation and reliable operation in demanding environments.
RCS401 Specification
| Measuring Range≥2m @10%reflectivity,100KluxPower Supply12-36V AC/DC | |||
| Accuracy | ±5cm | Average Current | ≤70mA |
| Distance Resolution | 1cm | Power Consumption | ≤0.35W |
| Operating Temperature | -30℃~60℃ | Peak Current | 150mA |
| Protection Rating | IP65 | Output | Day Contact 48VACDC,100mA |

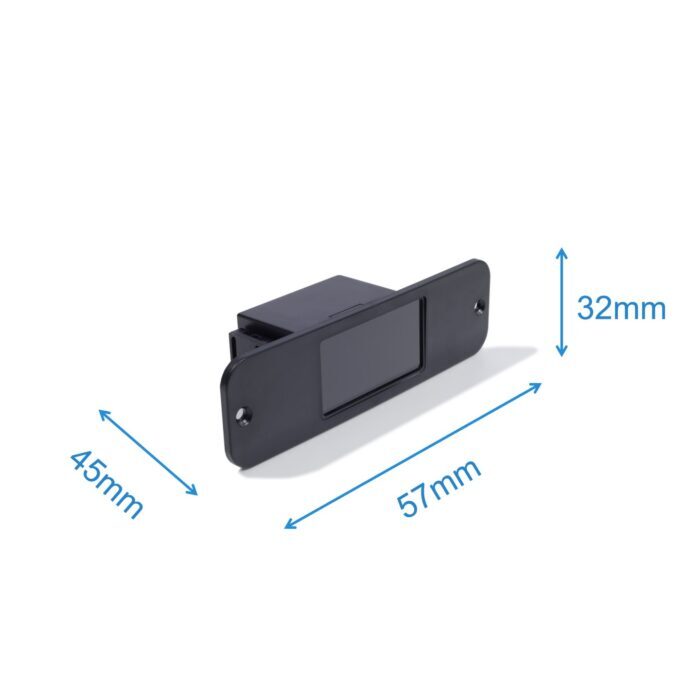

| Light Source | VCSEL Laser | Dimensions | 57mm x 32mm x 45mm |
| Central Wavelength | 905nm | Housing Material | PC |
| Eye Safety | Class1(IEC60825) | Cable Length | 3m |
| Field Of View | 14°X 1° | Weight | 100g |
