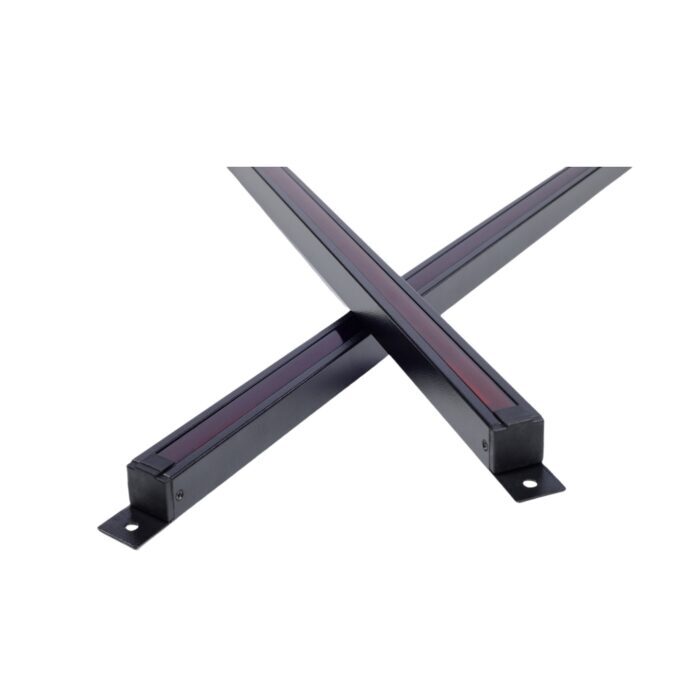

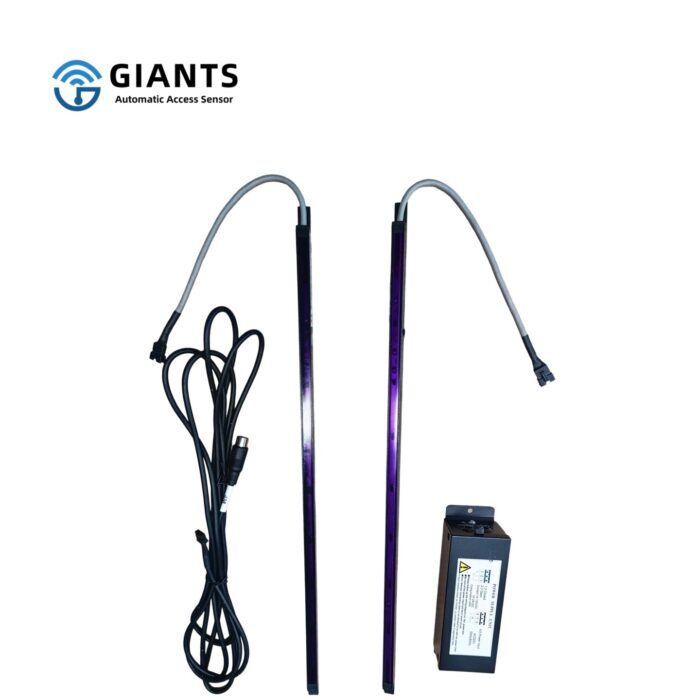

GSL Safety light curtain

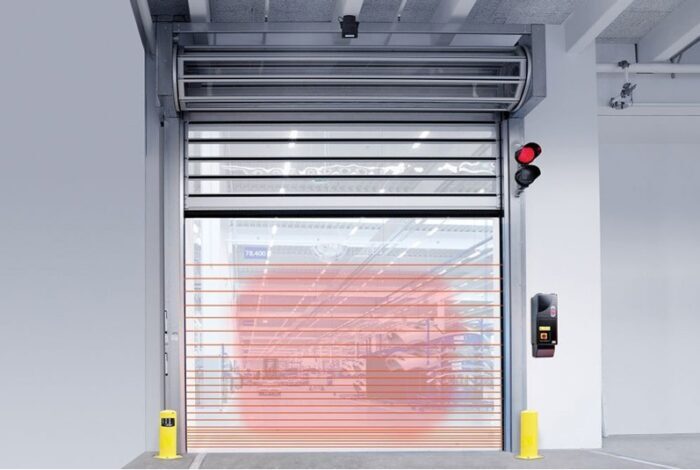

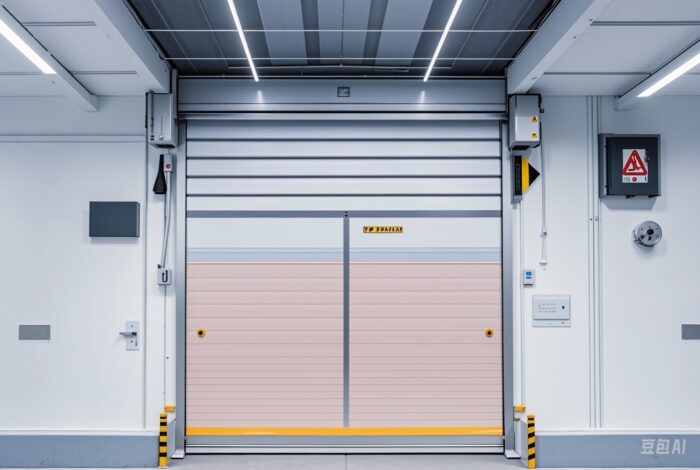

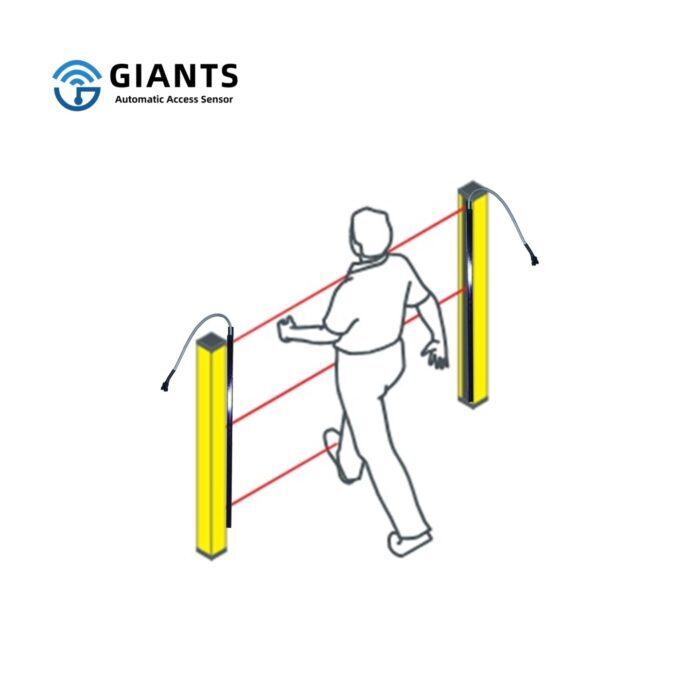

Enhance the safety of industrial doors, garage doors or gates with safety light curtains to prevent injuries to personnel or vehicles.
It is a good safety barrier for various entrances and exits. It is sturdy and durable. It is easy to use and install.
GSL Specification
| Technical Specifications | 520MM | 1000MM | 1500MM | 1800MM | 2000MM | 2500MM | Reliability | Certifications | ||
| IR Pairs | 8 | 16 | 24 | 29 | 32 | 45 | Position Tolerance | Vertical: ±15mm/7° | High/Low Temp Test | GBT2423.1-GBT2423.4 |
| Response Time | 45ms | 60ms | 60ms | 60ms | 60ms | 60ms | Horizontal: ±3mm/5° | Product Certifications | EN61000,EN60825 | |
| Beam Count | 8 | 16 | 24 | 29 | 32 | 45 | Operating Distance | 1m-10m | – | – |
| Beam Spacing | 59mm | 59mm | 59mm | 59mm | 59mm | 40mm | Temperature Range | -20°C to +65°C | – | – |
| Lowest Beam | ≤35mm | ≤35mm | ≤35mm | ≤35mm | ≤35mm | ≤35mm | Light Immunity | 100000Lux | – | – |
| Highest Beam | ≥420mm | ≥900mm | ≥1380mm | ≥1670mm | ≥1850mm | ≥1850mm | Protection Rating | IP54(IP67 customizable for T-profile) | – | – |
| Blanking Func. | – | – | S/T-Type | S/T-Type | S/T-Type | S/T-Type | Vibration Test | 4 hours per X/Y/Z axis, 20-500Hz, 30Hz sine wave for 30min | – | – |
| Power Consumption | 4W | 4W | 4W | 4W | 4W | 4W | – | – | – | – |
