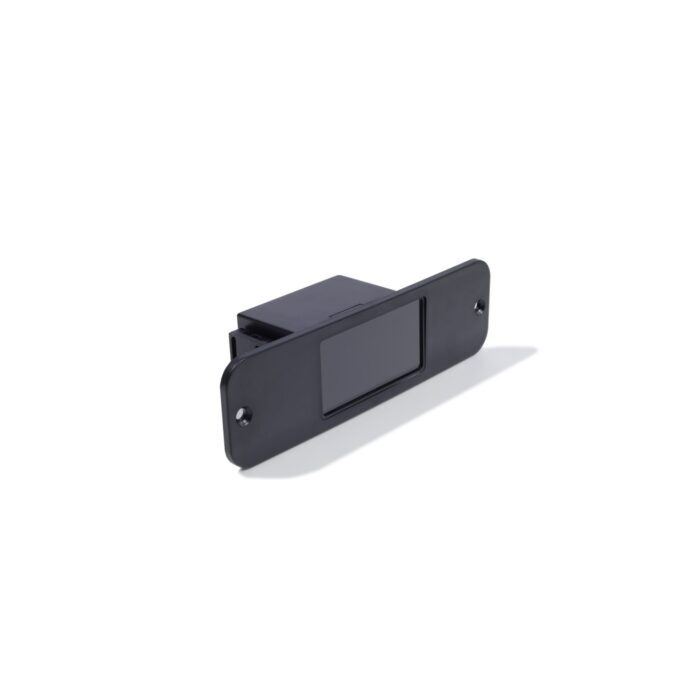

Smart Spot
Automatic door safety sensor
Smart spot Specification

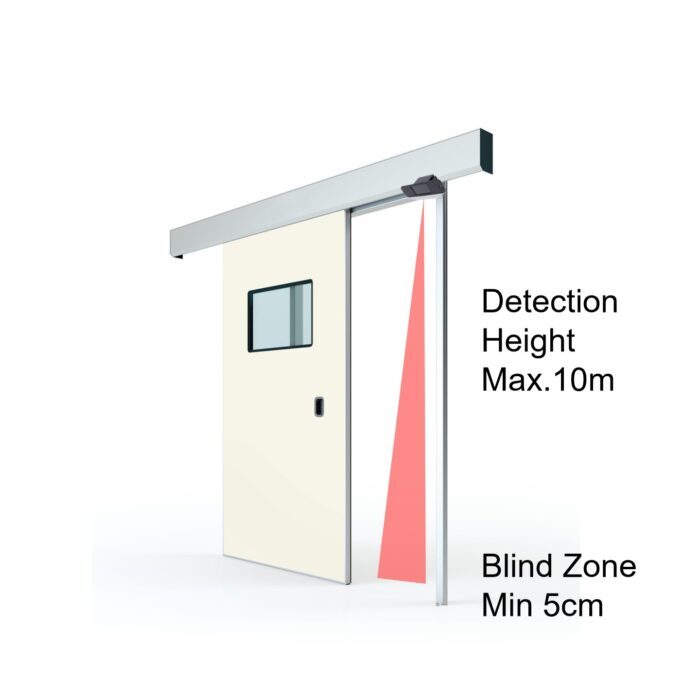

| Detection range | 0-10m @90%reflectivity0-2.5m @10%reflctivity |
| Accuracy | ±6cm @(0.2m~3m)±2% @(3m-10m) |
| Range resolution | 1cm |
| Frame rate | 1-250HZ(adjustable) |
| Ability to resist ambient light | 70Klux |
| Operating temperature | -30℃~60℃ |
| Protection class | IP65 |
| Light source | VCSEL |
| Central wavelength | 850nm |
| Human eye safety | Class1(IEC60825) |
| FOV | 2° |
| Power supply | 12-36V AC/DC |
| Average current | ≤70mA |
| Consumption | ≤0.35W |
| Peak current | 150mA |
| Output | 48VACDC,100mA |
| Dimension | 53mm x 47mm x 57mm |
| Housing material | Aluminum |
| Cable length | 3m |
| Weight | 100g |
