TCS401 2D laser safety curtain

Category Area warning system

TCS401
2D safety laser curtain

10m range and 1cm resolution
Visible light spot assist with positioning Detection distance set by App
IP65 metal housing Switch ON/OFF sensor

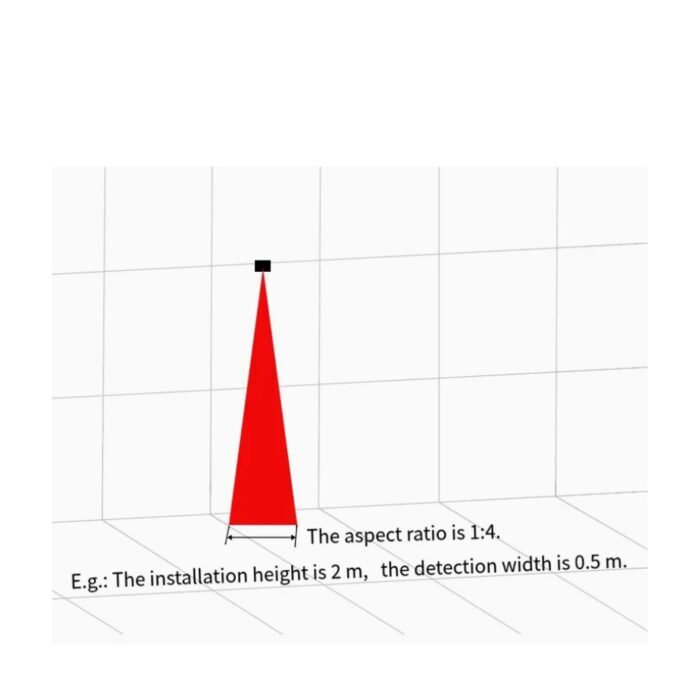

Aspect ratio 1:4
It can be used in applications such as anti-pinch, regional safety, and virtual switch in the fields of automatic doors, car doors, screen doors, machine safety, etc.
A laser safety light curtain with extremely high cost performance.

LS90 Specification

Detection range	10m @90%reflectivity0-2.5m @10%reflctivity
Accuracy	±5cm
Range resolution	1cm
Frame rate	1-250HZ(adjustable)
Ability to resist ambient light	100Klux
Operating temperature	-30℃~60℃
Protection class	IP65
Light source	VCSEL
Central wavelength	905nm
Human eye safety	Class1(IEC60825)
FOV	14°
Power supply	12-36V AC/DC
Average current	≤70mA
Consumption	≤0.35W
Peak current	150mA
Output	48VACDC,100mA
Dimension	53mm x 47mm x 57mm
Housing material	ABS
Cable length	3m
Weight	250g
