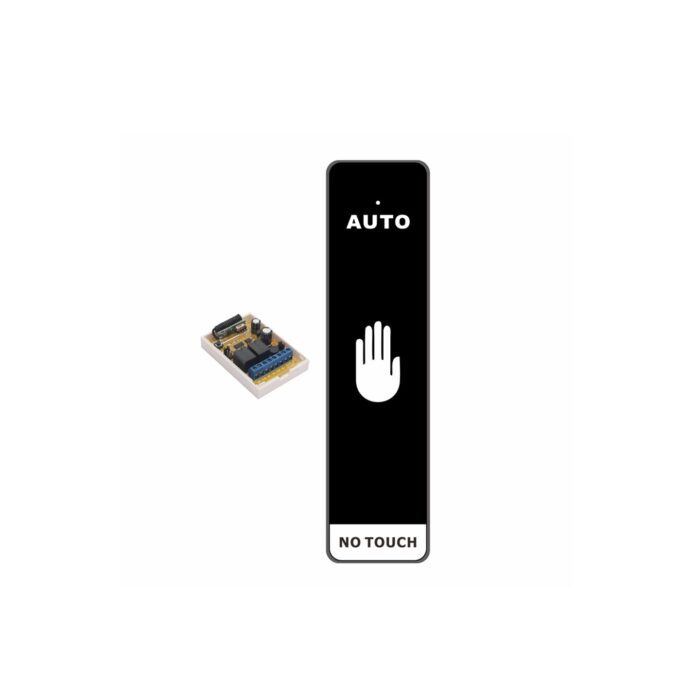

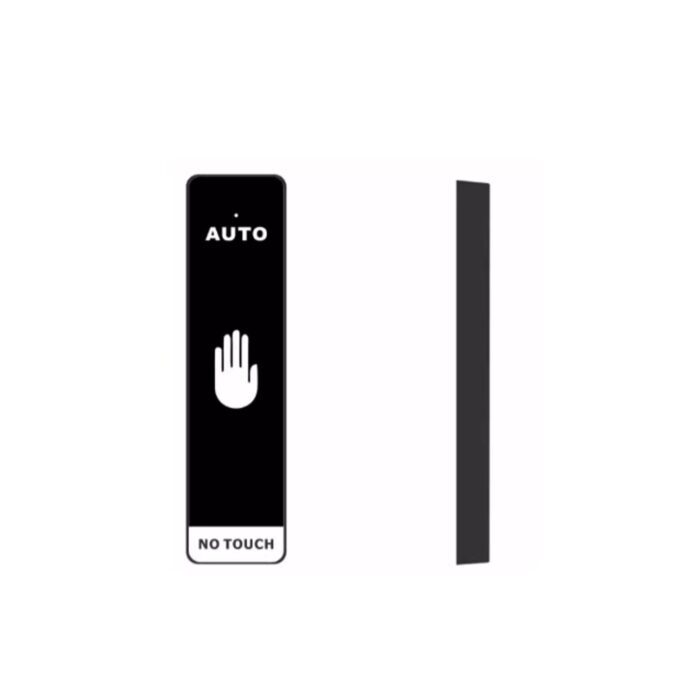

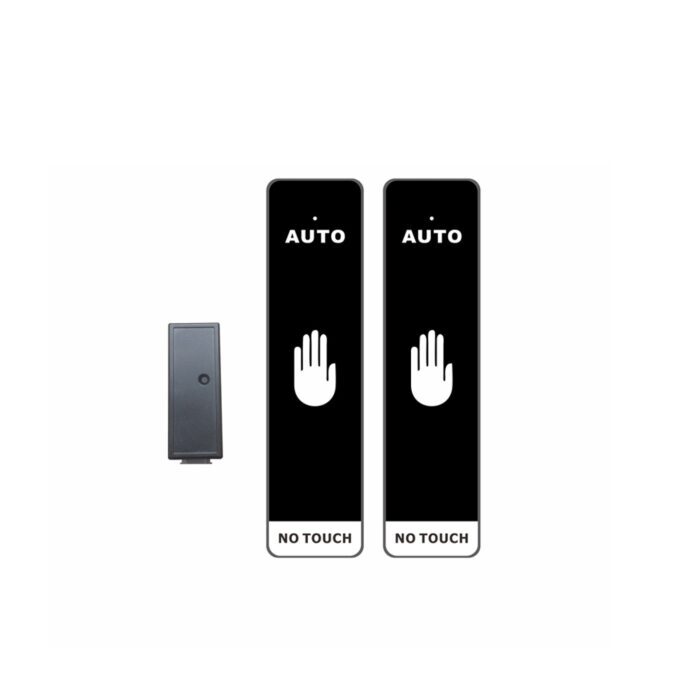

UTL Touchless Door Switch

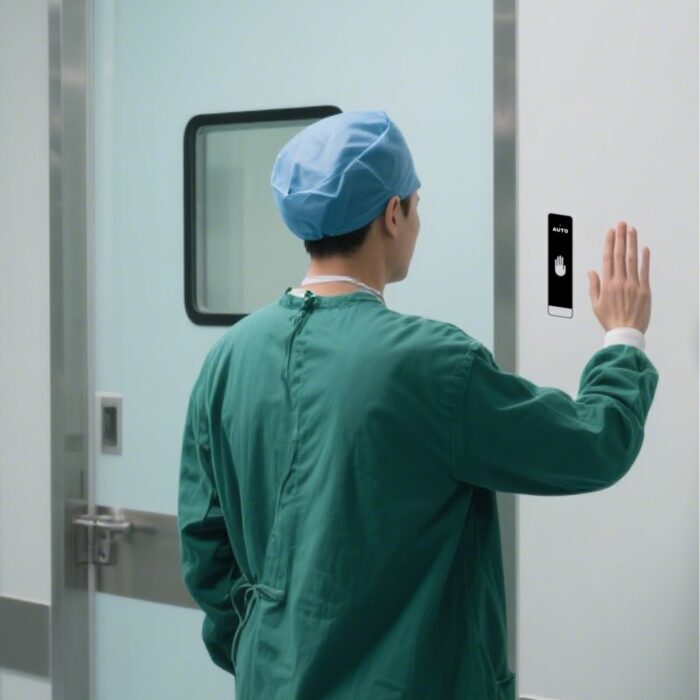

TheUTL series offers versatile touchless switching solutions for hygienic and automated access control. Featuring an electroplated panel and 433MHz wireless technology, these switches provide a reliable operating range of over 100 meters line-of-sight. With support for multiple power options (AC/DC 12-30V or battery power) and low power consumption design, they are ideal for medical environments, cleanrooms, and automatic doors. The compact design simplifies installation and wiring, while adjustable sensitivity ensures adaptability to diverse user needs.
UTL Specification
| Operating Frequency | 433MHz | Power upply | AC/DC12-30V |
| Power Supply | AC/DC12-30V (for wired) / 2xAAA (press switches) / 2xCR2032 (touch/sensor switches) | relay contact capacity | 1A 24VDC |
| Battery Life | 300 days (500 presses/day with premium batteries) | appearance size | 145mm(L)x30mm(W)x20mm(H) |

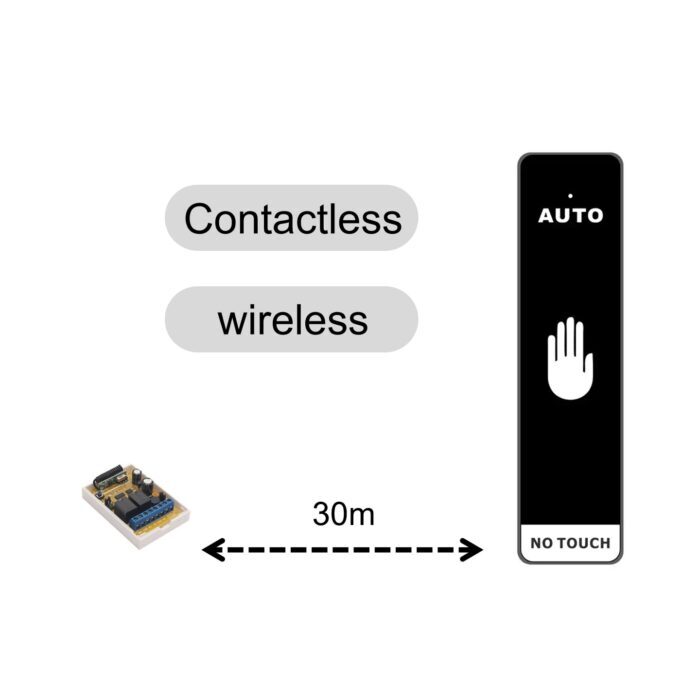

| Transmission Distance | >100m line-of-sight (433MHz) | static current | 15mA |
| Operating Temperature | -20°C ~45°C | ||
| Operating Humidity | 10-90%RH | ||
| Dimensions | 145×30×20mm (remote) / 150×38×11mm (receiver) / 86×86mm (square switch) |
